Product Introduction:
Beautiful and colorful, ASTER is a new skillfully engineered product with a fashionable metallic appearance. Powered by single interchangeable 18650 cell, it is capable of outputting up to 75W of power. It also features the upgradeable firmware and convenient side charging port. With an ergonomically redesigned shape, you can hold it in the palm with ease and comfort. ASTER
Parameter:
Size: 35.5mm*23.0mm*91.0mm
Thread type: 510 thread
Output mode: VW/Bypass/Smart/TC(Ni,Ti,SS,TCR-M1,M2,M3) mode
Output wattage: 1-75W
Resistance range: 0.05-1.5ohm (TC modes)
Resistance range: 0.1-3.5ohm (VW/Bypass/Smart mode)
Temperature range: 100-315℃/200-600℉ (TC modes)
Color: deep pink, grey, black, white, brushed Silver

Standard configuration:
1×ASTER (without cell)
1×USB Cable 1×User Manual


ASTER
ASTER
Unique Shape Design for Comfortable Grip
With an ergonomically redesigned shape, you can hold it in the palm with ease and comfort.
Replaceable 18650 Cell
The magnetic cover is for ease of replacing 18650 cell.

ASTER
ASTER
ASTER
High Output Power
Powered by single 18650 cell, the ASTER is capable of
outputting up to 75W of power, allowing a satisfying
amount of vapor production.
Various Output Modes
The ASTER is installed with the latest firmware with various output modes including VW, Bypass, Smart and
TC(Ni,Ti,SS,TCR) modes, bringing you different vaping experiences.
ASTER
ASTER

Dual Circuit Protection

The circuit protection system has both software and hardware battery protections of over-charging, over-current and over-discharging.
ASTER

Reverse Polarity Protection

Reverse polarity protection is fully achieved by the application of special battery anti reverse circuit in the circuit board.
510 Spring Connector
The ASTER also retains stainless steel spring loaded 510 connector for strong wear resistance and high adaptability.
ASTER
Functions of Micro USB Port
Charging: the 18650 cell can be charged in the ASTER through the side USB port via 1A wall adapter or computer or charged with an
external battery charger. The recommended way is to charge the cell externally as it will take less time to give the cell a full charge.
ASTER

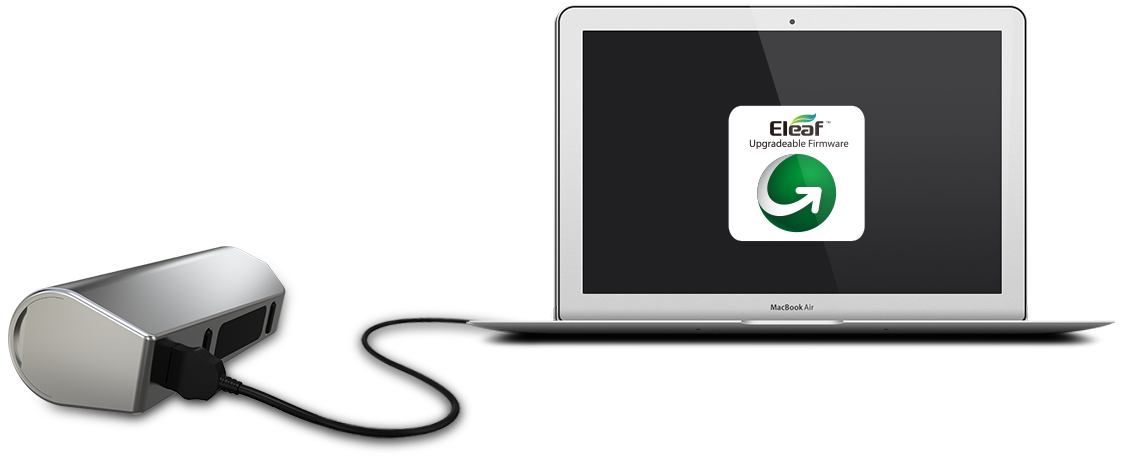

Firmware upgrading: the firmware can be upgraded by connecting the device with a computer through the USB port via a micro USB cable.
ASTER
Download the file below to put custom logo in ASTER.
ASTER
