Eleaf iKonn 220 with ELLO

Eleaf iKonn 220 with ELLO
Eleaf iKonn 220 with ELLO
Product Introduction:
Powered by dual 18650 batteries, the Eleaf iKonn 220 provides a maximum power of 220W, an upgradeable firmware alongside with a big 0.91-inch screen that offers a concise and clear interface with two separate battery bars. It features a battery balancing trickle charge system and a 2A quick charge capability. The innovative RC adapter will convert the Eleaf iKonn 220’s 510 connection into a USB output for power bank mode. The ELLO atomizer that features new powerful HW coils and retractable top fill system, pairs with the Eleaf iKonn 220 perfectly for cloud chasers. Eleaf iKonn 220 with ELLO
Parameter:
Size: 44mm*28mm*135mm (with ELLO 4ml type)
Size: 44mm*28mm*126mm (with ELLO 2ml type)
Weight: 184.5g (with ELLO 4ml type)
Weight: 181.3g (with ELLO 2ml type)
Output wattage: 1-220W
Maximum charging current: 2A
Maximum output current: 50A
Thread type: 510 thread
Battery type: high-rate 18650 cells
Battery type:Continuous discharge current should be above 25A)
Output mode: VW/TC(Ni,Ti,SS,TCR-M1,M2,M3)
Resistance range: 0.05-1.5ohm (TC modes)
Resistance range: 0.1-3.5ohm (VW mode)
Temperature range: 100-315℃/200-600℉(TC modes)
Standard configuration:
1×Eleaf iKonn 220 (without batteries)      1×ELLO Atomizer (4ml/2ml)
1×HW3 Triple-Cylinder 0.2ohm Head            2×User Manuals
1×HW4 Quad-Cylinder 0.3ohm Head     1×QC USB cable      Spare Parts


Eleaf iKonn 220 with ELLO
Eleaf iKonn 220 with ELLO
Higher Output of 220W
Powered by dual 18650 batteries, the Eleaf iKonn 220 is capable of outputting a maximum power of 220W, providing you with a large amount of vapor production.
New Powerful HW3 and HW4 Coils
The Eleaf iKonn 220 with ELLO comes with new HW coils: HW3 Triple-Cylinder 0.2ohm
Head and HW4 Quad-Cylinder 0.3ohm Head for cloud chasing.
Eleaf iKonn 220 with ELLO
Big Concise 0.91-Inch Screen with Dual Battery Bars
The Eleaf iKonn 220 comes with a big 0.91-inch screen that offers a concise and clear interface with dual battery bars respectively revealing the battery levels of two 18650 batteries.
Eleaf iKonn 220 with ELLO
2A Maximum Charging Current for Quick Charge
With 2A maximum charging current, the batteries can be fully charged much more quickly.
iKonn Total  with ELLO
Battery Balancing Trickle Charge System
A battery balancing trickle charge system is introduced into the Eleaf iKonn 220 to bring two batteries to the equal level charge, which also ensures high security in charging.
iKonn Total with ELLO
Eleaf iKonn 220 with ELLO
Preheat Function & Switchable Interfaces
Preheat function allows the device to quickly heat up the coil at a higher wattage, providing you with a nice vaping experience. Eleaf iKonn 220 also has three switchable display interfaces for you to choose from: Puff interface, Second interface, and Current (amp) interface. Eleaf iKonn 220 with ELLO
Offering 4ml and 2ml Options
There are two versions of atomizers for you to choose to go with the Eleaf iKonn 220: ELLO (4ml) type & ELLO (2ml) type.
Eleaf iKonn 220 with ELLO
Eleaf iKonn 220 with ELLO
Convenient Retractable Top Fill
To fill the ELLO tank, you just need to slide the top cap with drip tip back to reveal the fill port.
Offering Two Drip Tips
The ELLO provides two drip tips for you, one with a tapered elegant shape and the other with a wider bore for more airflow and flavorful taste.
Eleaf iKonn 220 with ELLO
Detachable Parts for Easy Cleaning
All parts of the ELLO tank can be detached and reassembled, much more convenient to clean the tank.
Eleaf iKonn 220 with ELLO
High Compatibility
The Eleaf iKonn 220 can handle tanks up to 28mm diameter.
Eleaf iKonn 220 with ELLO
Dual Circuit Protection
The circuit protection system has both software and hardware battery protections of over-charging, over-current and over-discharging.
iKonn Total  with ELLO
Reverse Polarity Protection
Reverse polarity protection is fully achieved by the application of special battery anti reverse circuit in the circuit board.
iKonn Total with ELLO
Capable of serving as a power bank
With the new and innovative Reverse Charging (RC) adapter, the Eleaf iKonn 220 will convert the 510 connection into a USB output for power bank mode, providing power to your cell phone or other e-cig device.
Eleaf iKonn 220 with ELLO
Micro USB Port
Charging: The 18650 batteries can be charged in the Eleaf iKonn 220 through the side USB port via wall adapter or computer or charged with an external battery charger.
Eleaf iKonn 220 with ELLO

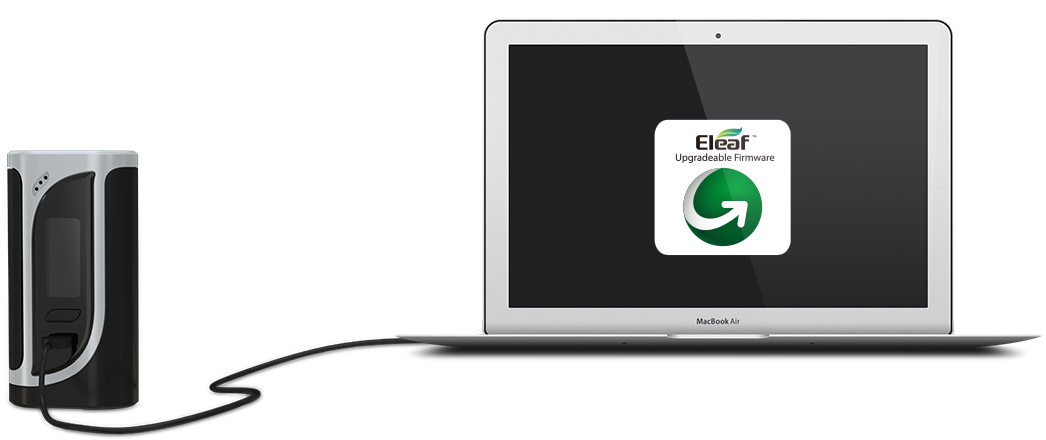

Firmware upgrading: The firmware can be upgraded by connecting the device with a computer through the USB port via a micro USB cable.

Eleaf iKonn 220 with ELLO
Download the file below to put custom logo into your Eleaf iKonn 220.
Eleaf iKonn 220 with ELLO
